E-Mobility Heat Exchange Modules
Air heat exchanger

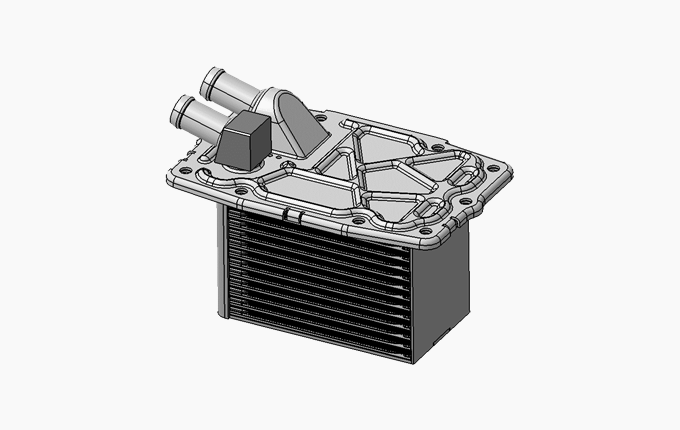

Air cooler

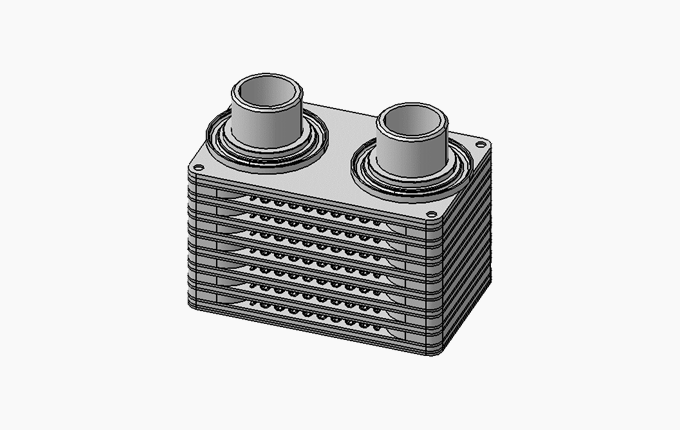

Hydrogen heat exchanger
Characteristics
- Air cooler: Cools high-temperature dry air supply inside membrane humidifier using coolant
- Hydrogen heat exchanger: Uses coolant to preheat hydrogen to the level required by the system
Main Performance Specifications
| Category | Item | Technical specification |
|---|---|---|
| Air cooler | Air operational temperature | -40 ℃ ~ 180 ℃ |
| coolant operational temperature | -40 ℃ ~ 80 ℃ | |
| Air outlet temperature | ≤ 85 ℃ | |
| Air pressure drop | ≤15mbar | |
| coolant pressure drop | ≤80mbar | |
| Rupture pressure | ≥20Bar | |
| Hydrogen heat exchanger | System operation temperature | -25 ℃ ~ 70 ℃ |
| Operational fluid temperature | -40 ℃ ~ 95 ℃ | |
| Hydrogen outlet temperature | ≥55 ℃ | |
| Hydrogen pressure drop | ≤12mbar | |
| coolant pressure drop | ≤20mbar | |
| Rupture pressure | ≥50Bar |
